Lian Li SUP-01 White

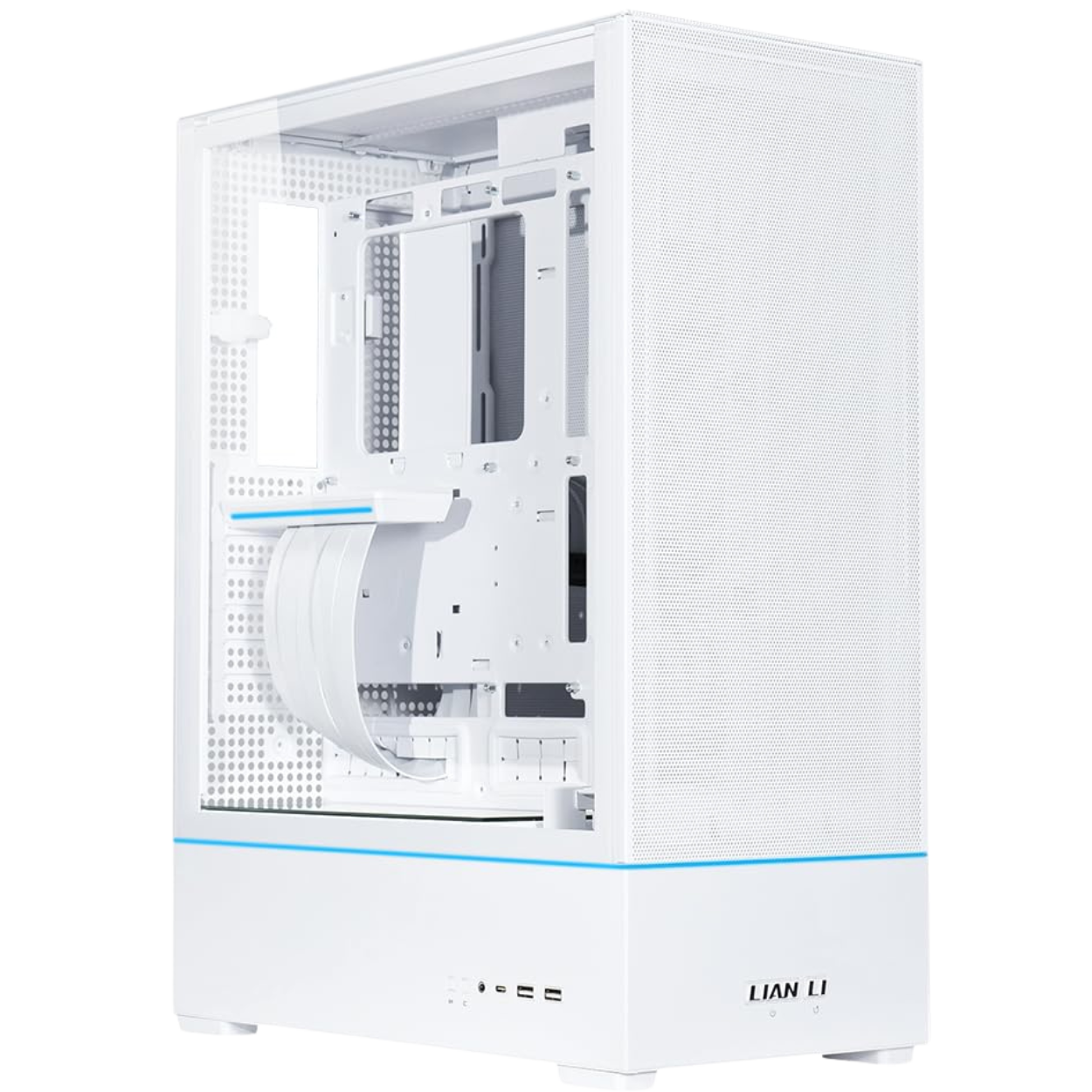

Lian Li SUP-01 White Compact midi tower, excellent airflow, 45 litre volume, plenty of space for hardware, integrated riser cable
- Compact 45-liter case in black
- Independent cooling in three chambers for optimal performance
- Direct GPU cooling thanks to placement in the front of the case
- Radiator for water cooling possible on the right side
- Fan mount outside the case for VRM, DRAM and M.2 cooling
- Includes three pre-installed 120 mm fans
Lian Li SUP-01: Minimal space requirement, maximum cooling
The Lian Li SUP-01 offers outstanding cooling performance in a compact 45-liter volume thanks to its unique three-chamber design. The PC case is engineered to efficiently integrate essential components such as the GPU, water cooling, PSU, motherboard, CPU, and storage drives, while ensuring excellent thermal performance.
Optimized cooling: three-chamber design and powerful fans

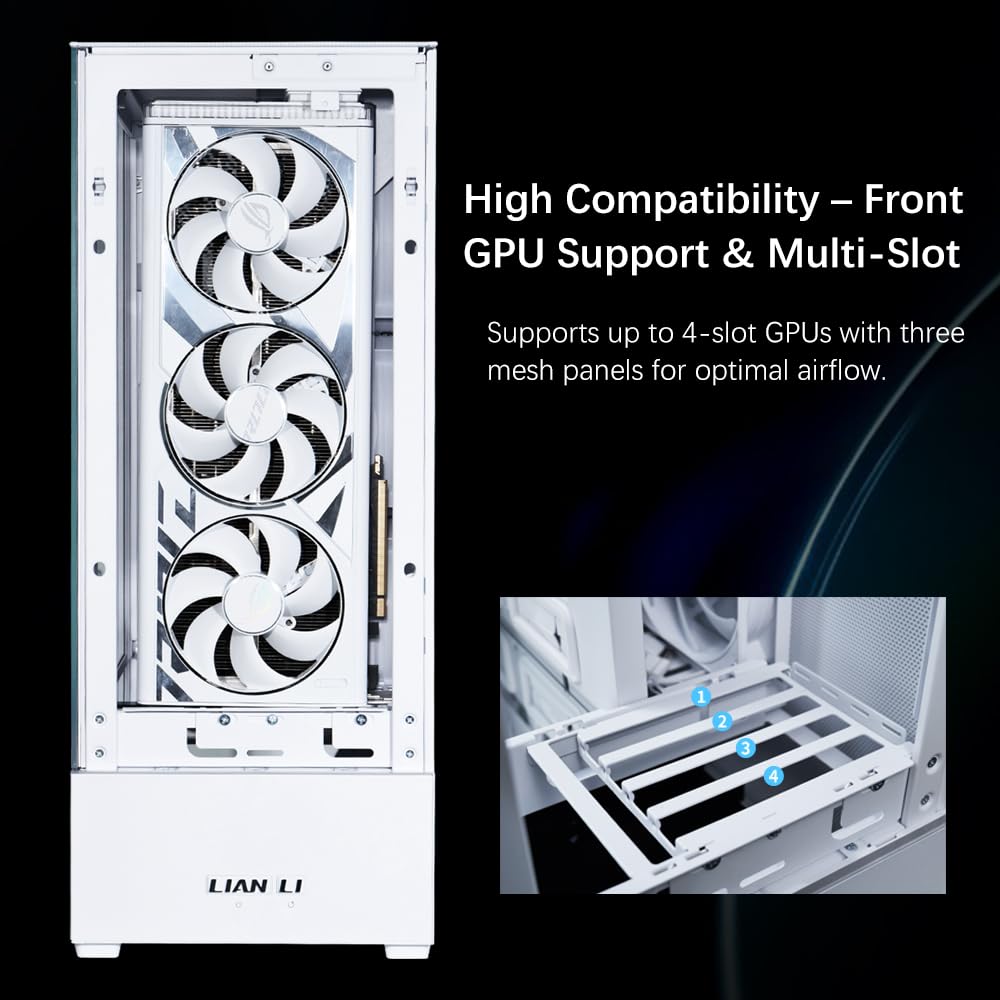

The SUP-01 features direct GPU cooling thanks to its placement at the front of the case. Optimal CPU cooling is enhanced by the option to mount a radiator on the right side of the case. This draws in cool air through the rear vent and dissipates heat through the side panel. Additionally, an additional fan mount with the option to mount a 120 mm fan cools the VRM, DRAM, and M.2 areas, with heat escaping through the top mesh panel.

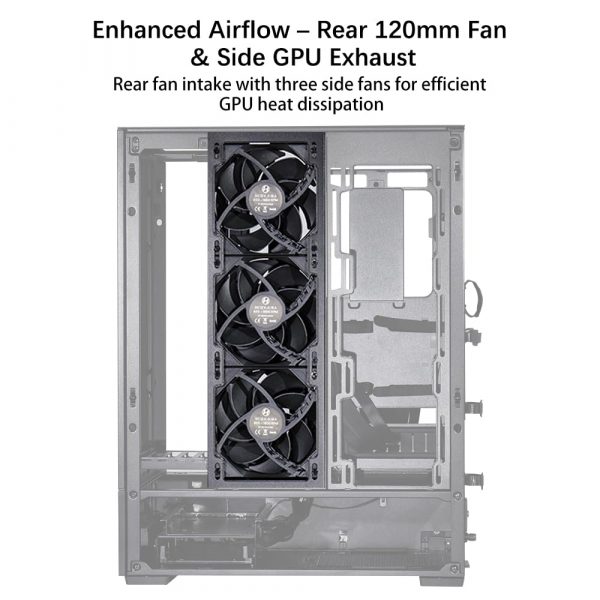

The case comes with three pre-installed 120 mm fans, providing an efficient base for cooling the core components. This makes the system ready to use immediately after installing the main components, while maintaining exceptionally low temperatures.
Flexibility and adaptability: The versatile possibilities of the SUP-01 case
The SUP-01 supports ATX, Micro-ATX, and ITX motherboards, as well as ATX power supplies with a maximum length of 220 mm. The case features a pre-installed PCIe 4.0 riser cable with aRGB stripes for a stylish look and allows for both horizontal and vertical GPU mounting.
With space for up to four 2.5-inch SSDs or two 3.5-inch HDDs, the SUP-01 offers flexible storage options. The I/O panel on the left side of the case includes two USB 3.0 ports, one USB Type-C port, an audio jack, and color control buttons for the RGB lighting.

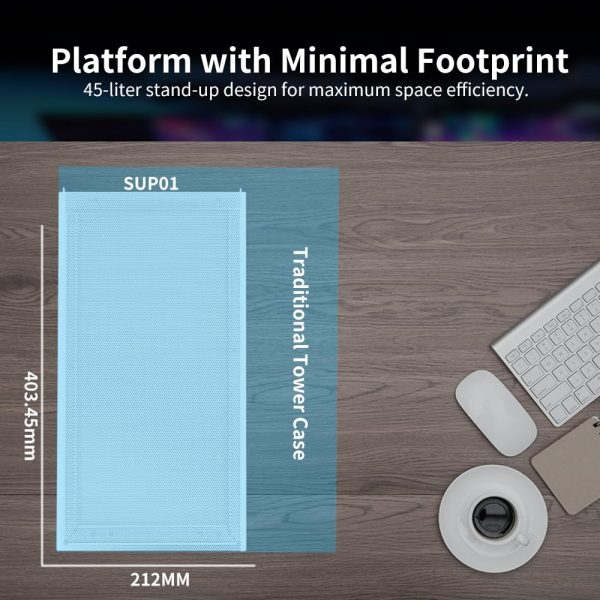

- imensions: 403.45 x 212 x 534 mm (with feet) (L x W x H)
- Material: steel, tempered glass
- Volume: 44.8 l
- Color: white
- Form factor: ATX, Micro-ATX, ITX
- Pre-assembled PCIe 4.0 riser cable with aRGB stripes
- Supported GPU length: 315 to 400 mm (286 to 315 mm with rotated bracket)
- Maximum CPU cooler height: 88.2 mm
- Power supply: ATX (max. 220 mm)
- Pre-installed fans: 3x 120 mm
- Fan slots:
Side 1: 3x 120 mm (pre-installed)
Side 2: 3x 120 mm or 2x 140 mm
Rear outside: 1x 120 mm - Radiator slots:
1x 360 mm or 280 mm - Drive bays:
2x 2.5 inch SSD or 2x 3.5 inch HDD (drive cage)
2x 2.5 inch SSD (behind MB tray) - Expansion slots: 7 (for low-profile cards), 4 (for standard cards with riser)
- I/O ports:
1x power button
1x reset button
2x USB 3.0 Type-A
1x USB 3.1 Type-C
1x 3.5 mm jack (4-pole, TRRS, audio in/out)
1x RGB color control button
1x RGB mode control button - Dust filter:
1x bottom
1x front
1x right side
1x top
|
Color
|
|
|
Main color
|
white |
|
Dimensions
|
|
|
Length / Depth
|
403.45 mm
|
|
Width
|
212 mm
|
|
Height
|
534 mm
|
|
Housing
|
|
|
Housing type
|
Midi Tower
|
|
Motherboard Support
|
|
|
compatible motherboard formats
|
ATX, Micro-ATX, Mini-ITX
|
|
max. motherboard form factor
|
ATX
|
|
Internal dimensions
|
|
|
max. CPU cooler height
|
88.2 mm
|
|
max. graphics card length
|
400 mm
|
|
max. power supply length / depth
|
220 mm
|
|
power supply
|
|
|
Power supply format
|
ATX
|
|
External connections
|
|
|
Audio outputs & inputs
|
1x output/input combo (3.5 mm jack, 4-pole, TRRS)
|
|
Housing features
|
|
|
Position I/O
|
Laterally
|
|
side panel
|
with window
|
|
Dust filter included
|
Yes
|
|
lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Scope of delivery
|
|
|
Fan pre-installed
|
3x 120 mm
|
