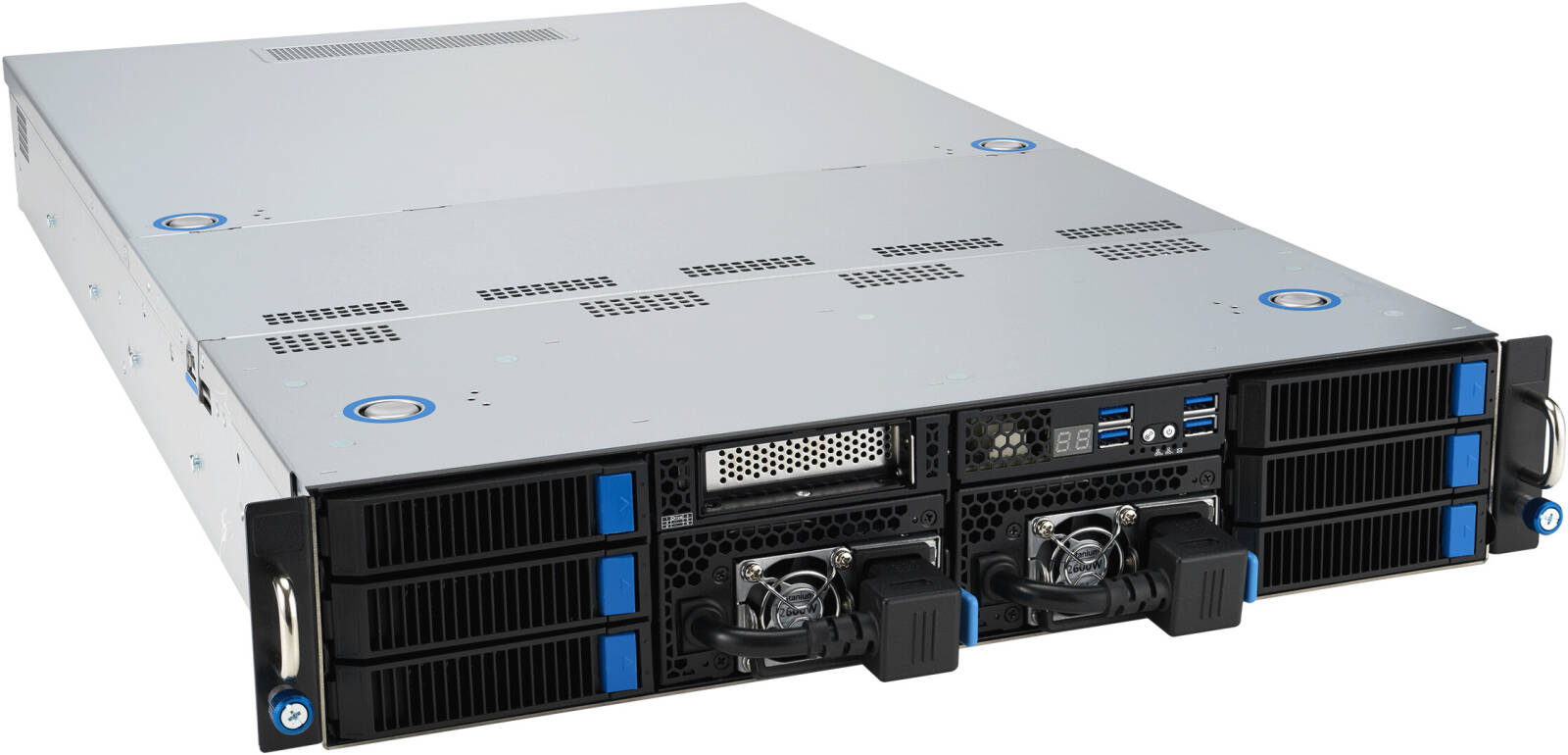

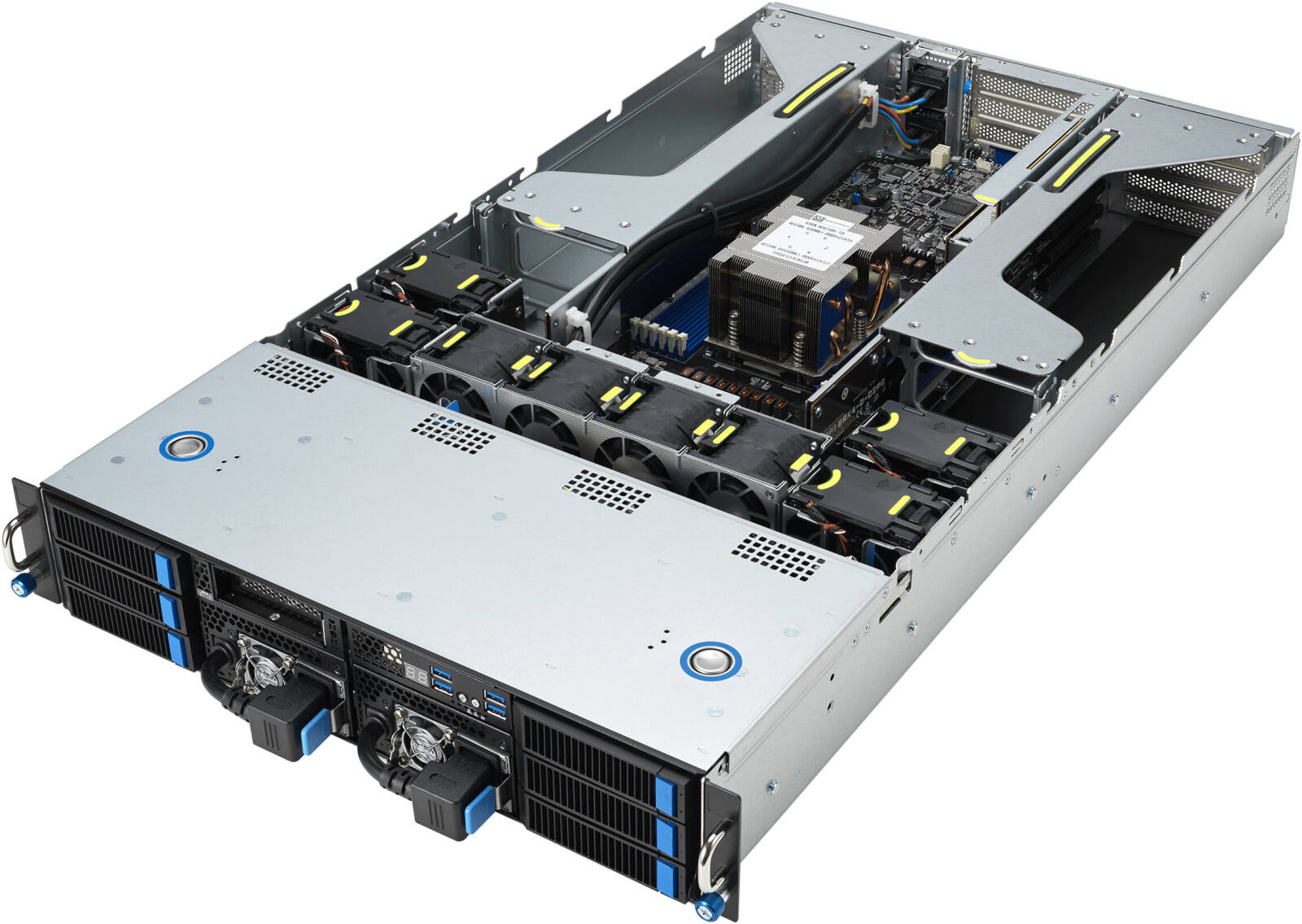

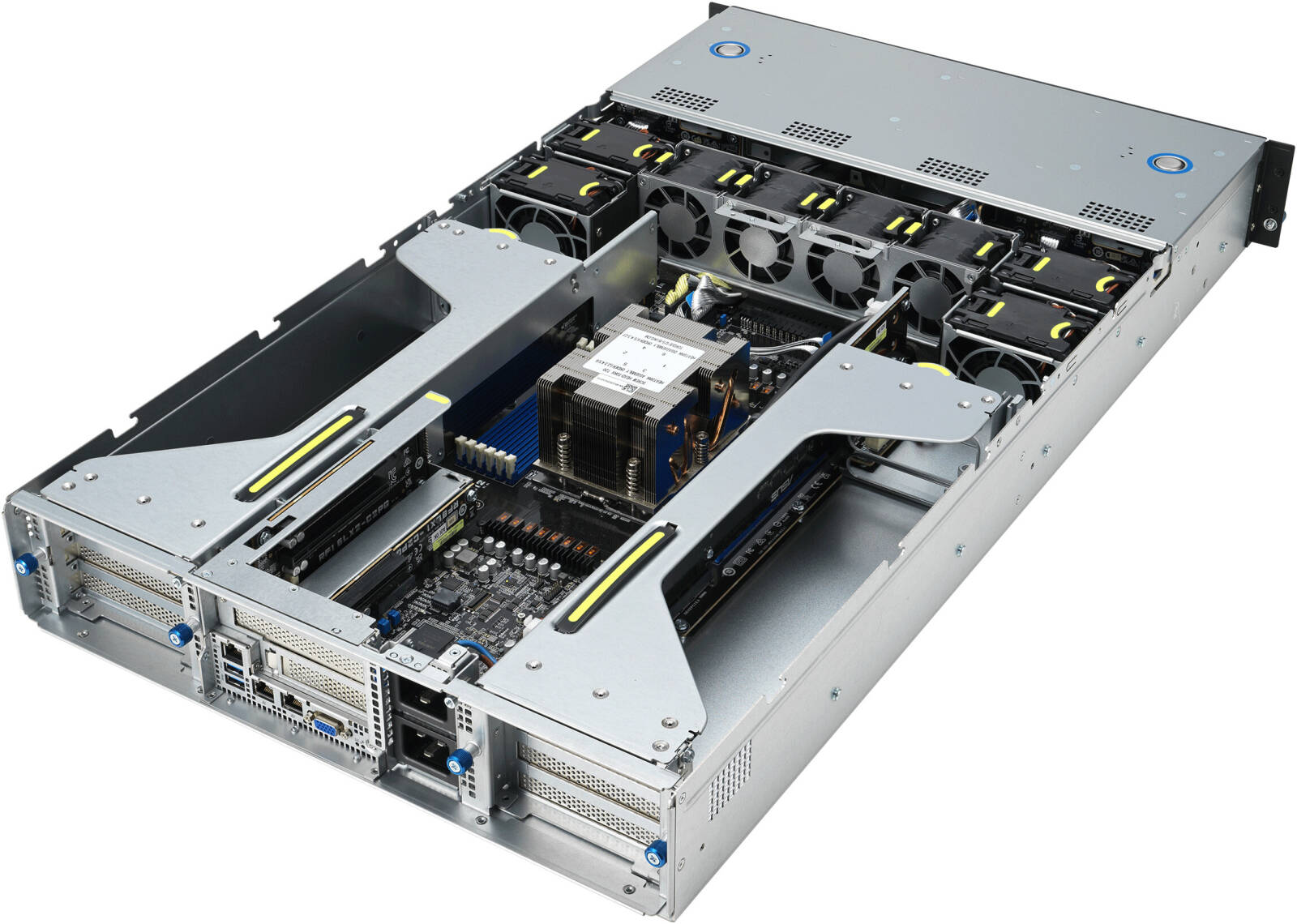

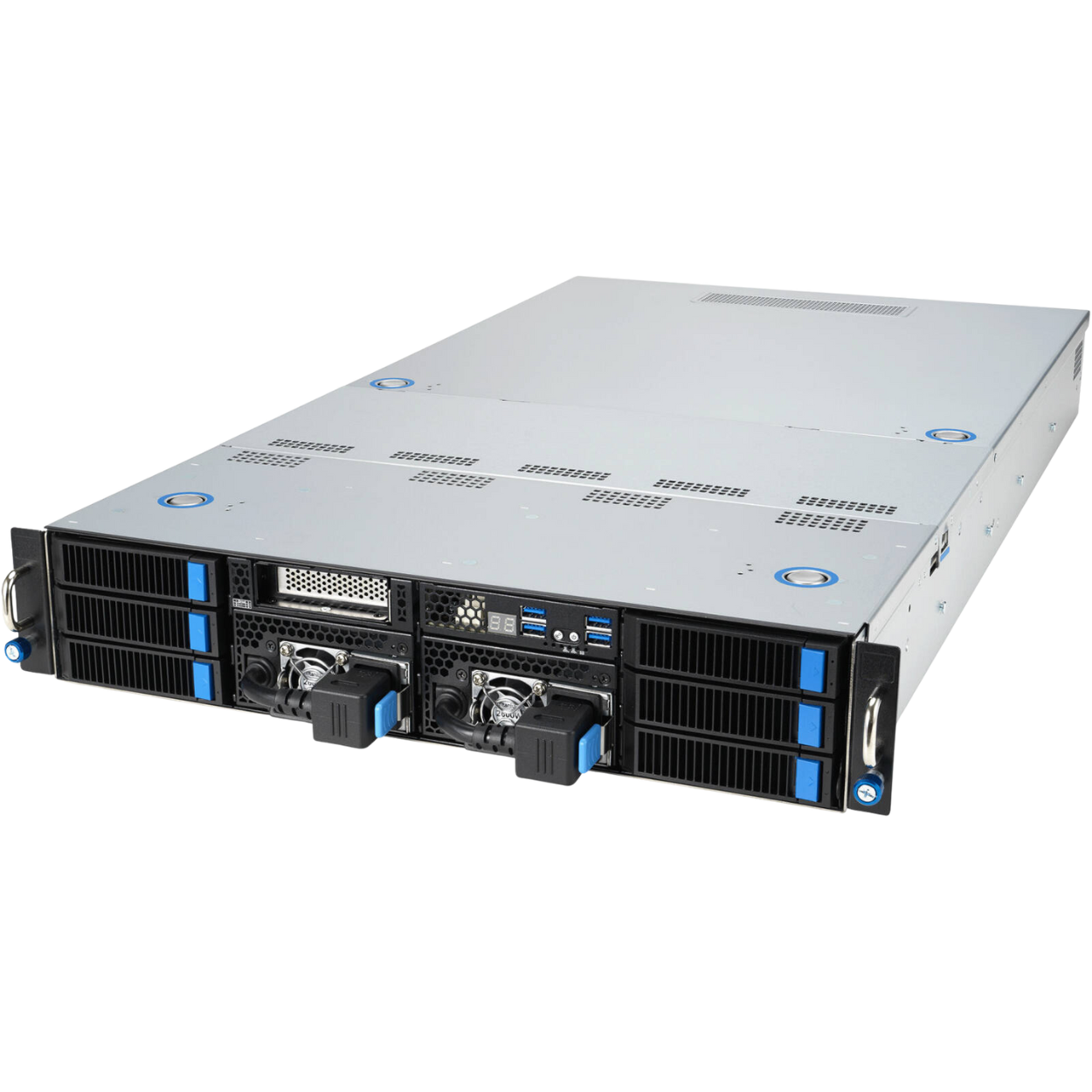

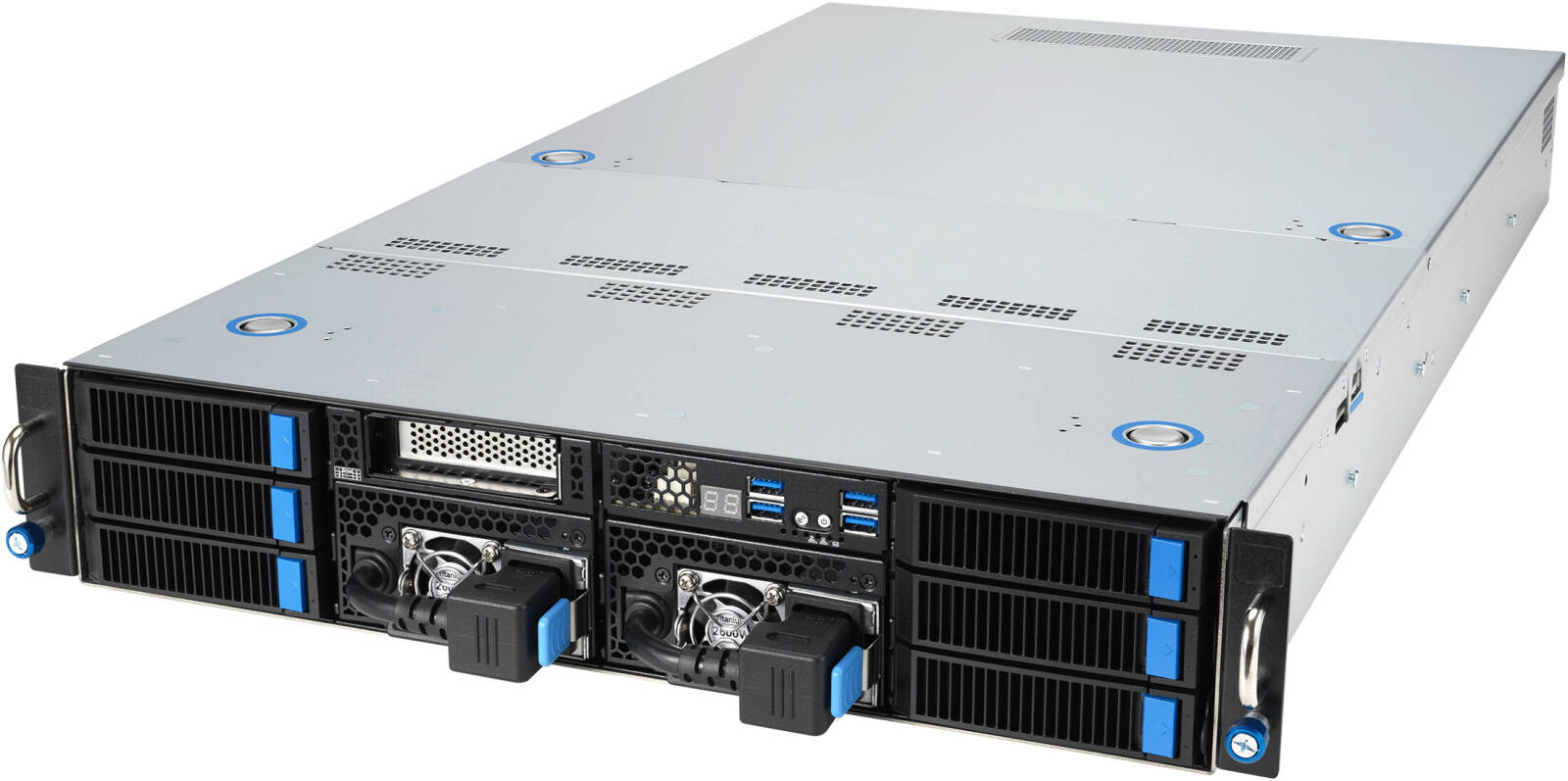

ASUS ESC4000A-E12
Introducing the ASUS ESC4000A-E12 a powerhouse of a server meticulously crafted to meet the rigorous demands of enterprise-level AI infrastructure. Powered by the formidable AMD EPYC™ 9004 processor, this single-socket server stands at the forefront of innovation, poised to deliver unparalleled performance that sets a new standard in the industry.
Specifications
| Processor / System Bus | 1 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 series (up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology |
| Memory | Total Slots: 12 (12-channel) Capacity: Maximum up to 3TB RDIMM Memory Type: DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB 3DS RDIMM |
| Expansion Slots | Rear: -4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards -1 x PCIe x16 slots (Gen5 x16 link, FH, HL) -1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module -1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1 |
| Storage | Storage Controller: CPU Integrated
Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Drive Bays: 2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays SKU1: 2 x 2.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS* SKU2: Build to order 2 x 2.5” SATA/SAS*/NVMe + 4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link ) Optional: 1 x M.2 with riser module *RAID card is required to support SAS hard drives For SKU1 additional 2 x NVMe support required a RAID card. |
| Networking | 2 x GbE LAN ports (Intel I350 Controller) 1 x Management Port |
| Multi-GPU Support | Please find the latest GPU support from https://servers.asus.com/support/gpu |

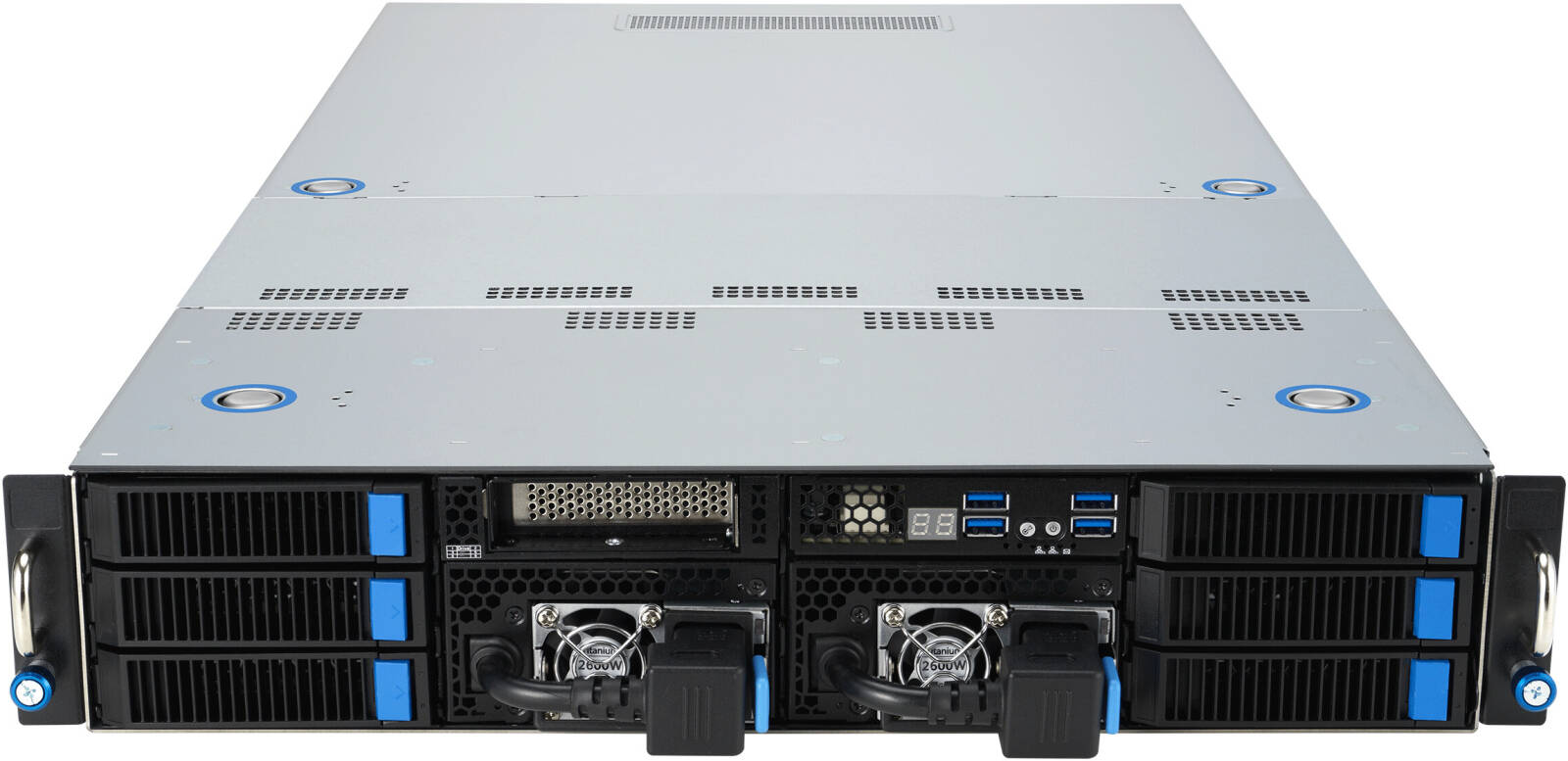

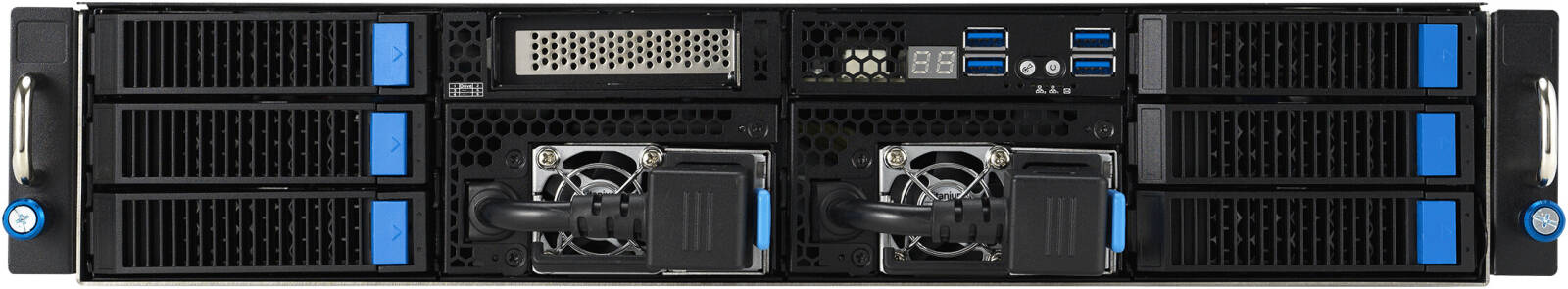

| Front I/O Ports | 1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports |

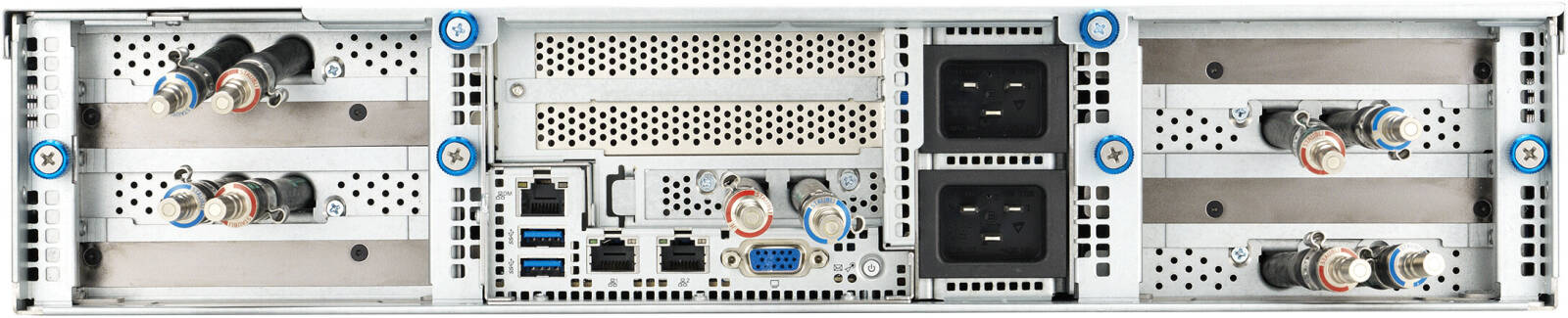

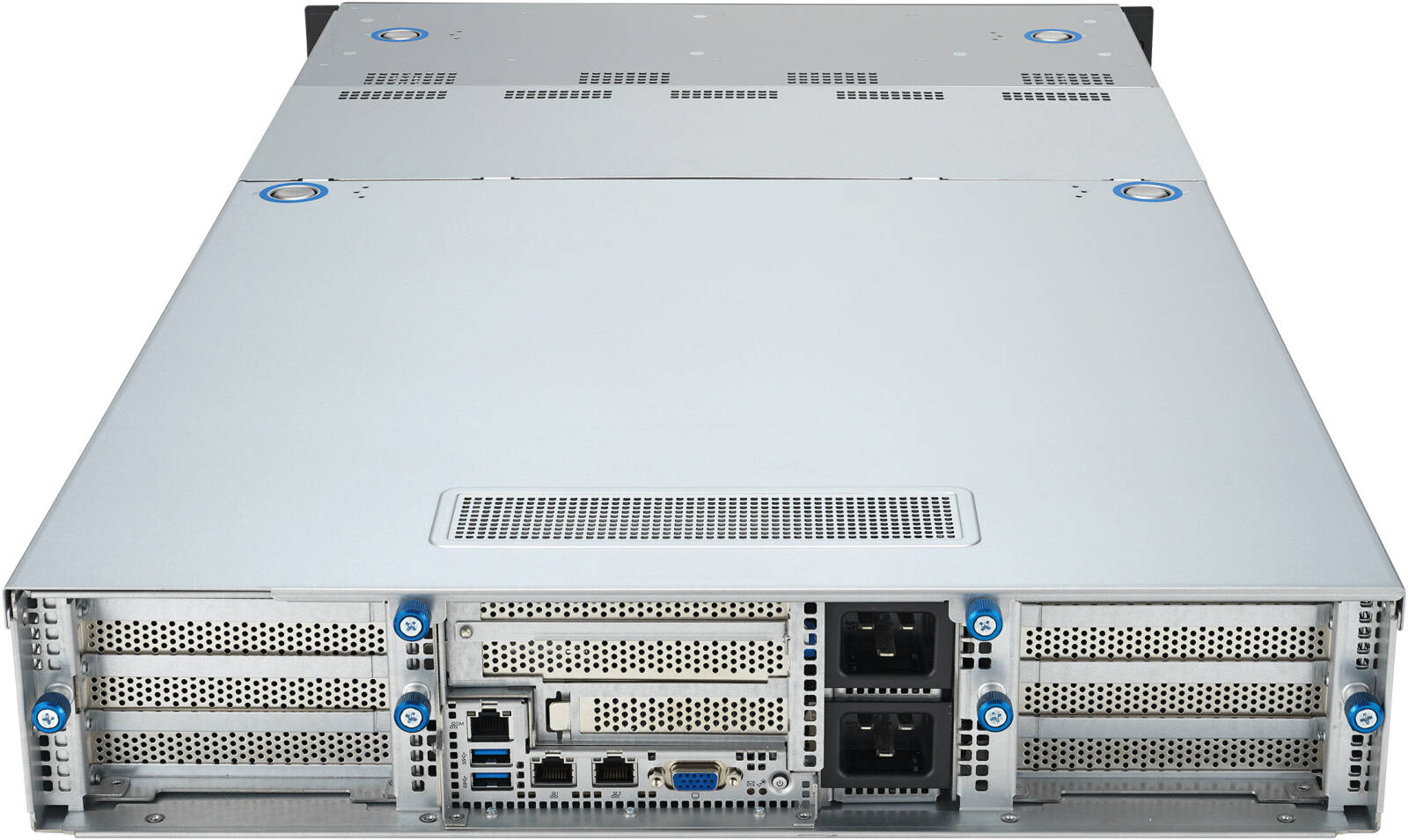

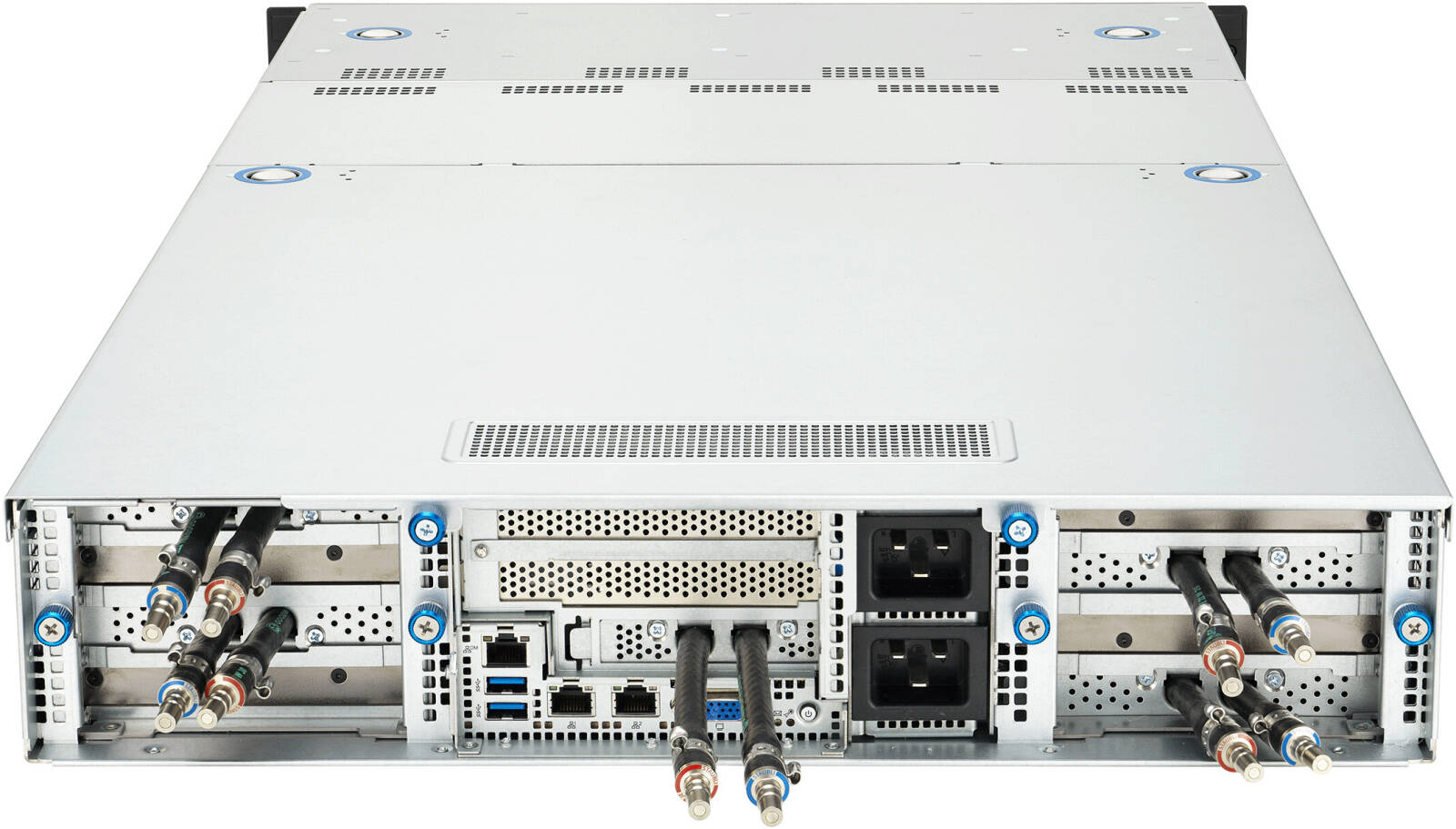

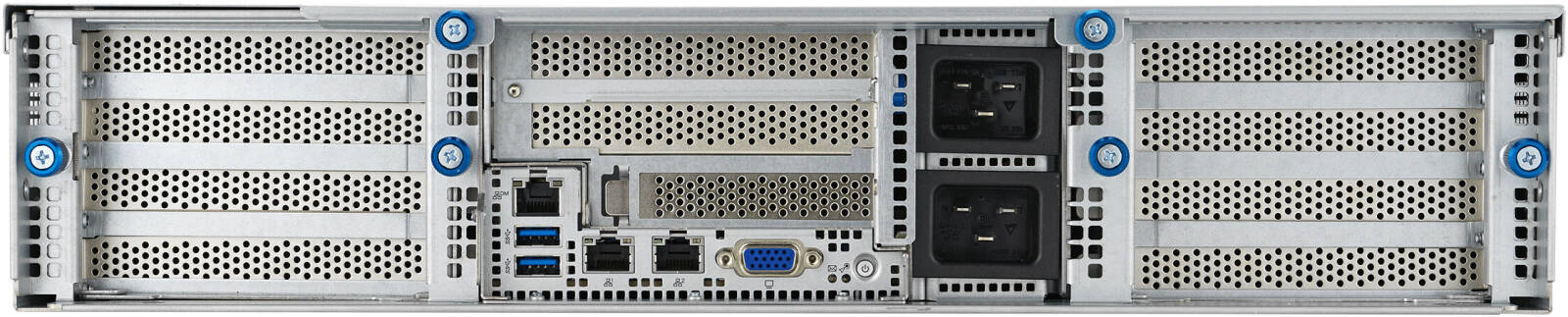

| Rear I/O Ports | 2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports 1 x Management port 1 x VGA port |
| Switch/LED | Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LED Rear: 1 x Power Button/LED 1 x Location LED 1 x Message LED |
| OS Support | Please find the latest OS support from https://servers.asus.com/support/os |
| Management Solution | ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 800mm x 439.5mm x 88.9mm (2U) 31.50″ x 17.30″ x 3.50″ |
| Weight | Net Weight: 24 Kg Gross Weight: 34.8 Kg |
| Power Supply | 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
